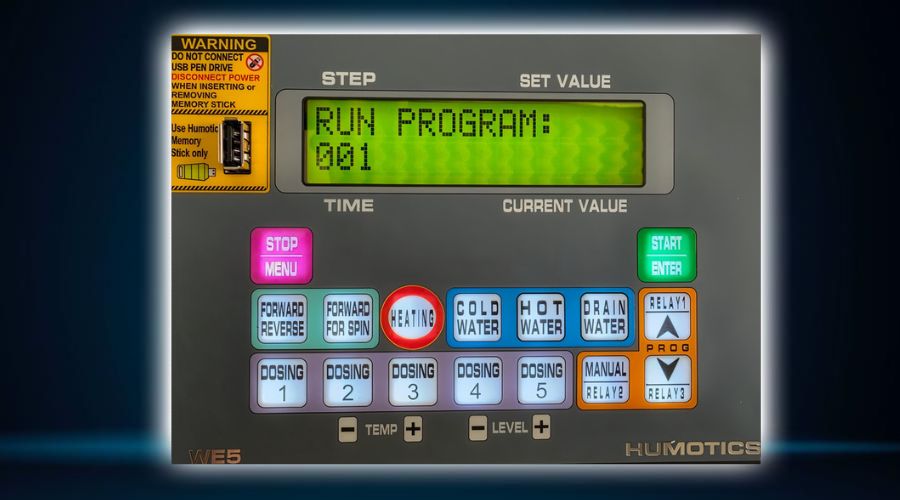

WE5 WASHER EXTRACTOR CONTROLLER

1. Fits any capacity 15KG to 120KG washer extractor or washing machine.

2. Total 79 user Customizable programs.

3. Both AUTO/MANUAL MODE Operation.

4. Builtin Digital Water Level Controller and Digital Temperature Controller.

5. Variable Frequency Drive 0 to 10 Volt Digital to Analog convertor output for direct speed control of the washer basket.

6. Buttons with dual color RED AND WHITE indicators which gives visual indication of all the outputs at a single glance. Very useful while making programs also.

7. No panel is required for control signals, so huge cost & time saving.

8. 24×7 Industrial operation.

9. Fuse protection for high Voltage outputs.

10. Memory Card Feature to copy recipes to and from WE5 Controller. Ease of Programming.

11. All inputs and outputs in one HMI unit no extra I0 Board.

12. 180mm x 130mm Standard fitting Size.
